Rated Power |
100W |
300W |
500W |
Output Waveforr |
Modified sine wave |
Pure Sine Wave |
AC Output Voltage |
110V,220V |
AC Output Frequency |
50Hz/60Hz ±0.5Hz |
Conversion Efficiency |
Maximum Value>90% |

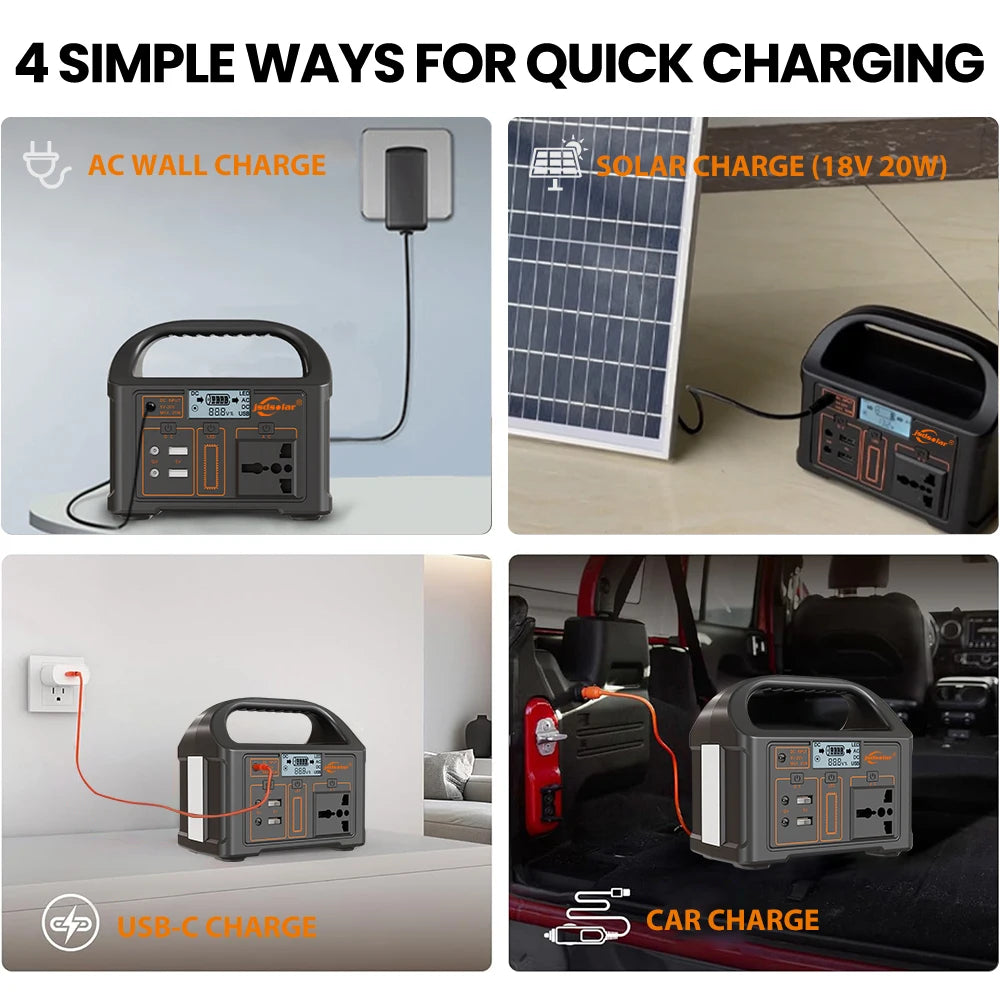

Charging interface |
Charger Port and Solar Panel Charging Port DC5521
(Built in solar intelligent controller) |
AC Output Socket |
Universal Socket |
DC Output Voltage |
DC5V 2.4A, 2*USB；
DC12V 3A, 2*DC5521 |
USB 5V 2.4A; QC 3.0; PD 45W; DC12V8A; 3* DC5521 Port |
LED Light States |
LED bright, half bright, flashing,
LED off 4 states |
LED high beam,low beam.bight,half bight,
fishing LED of 6 states |

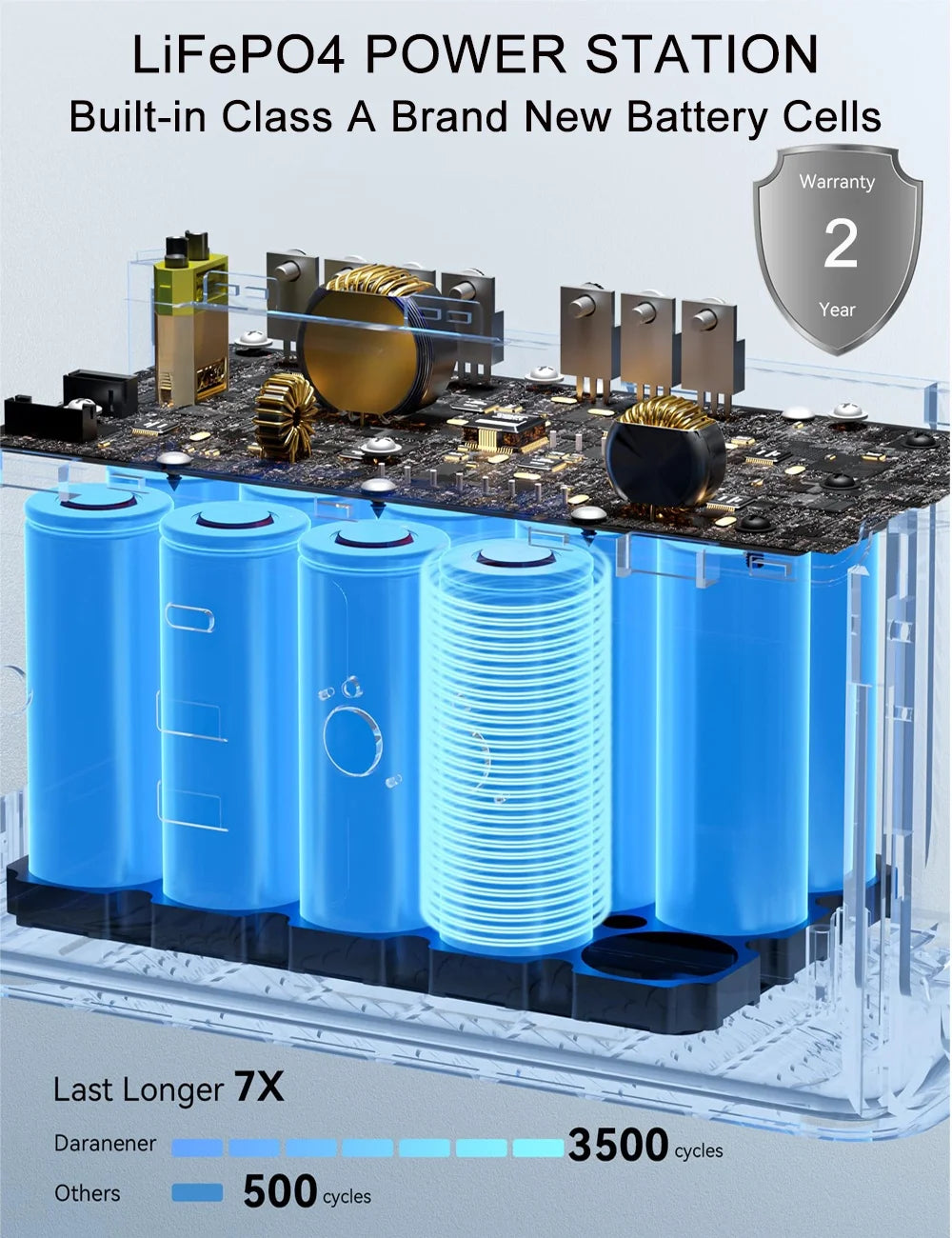

Battery Type |
LiFePO4 |

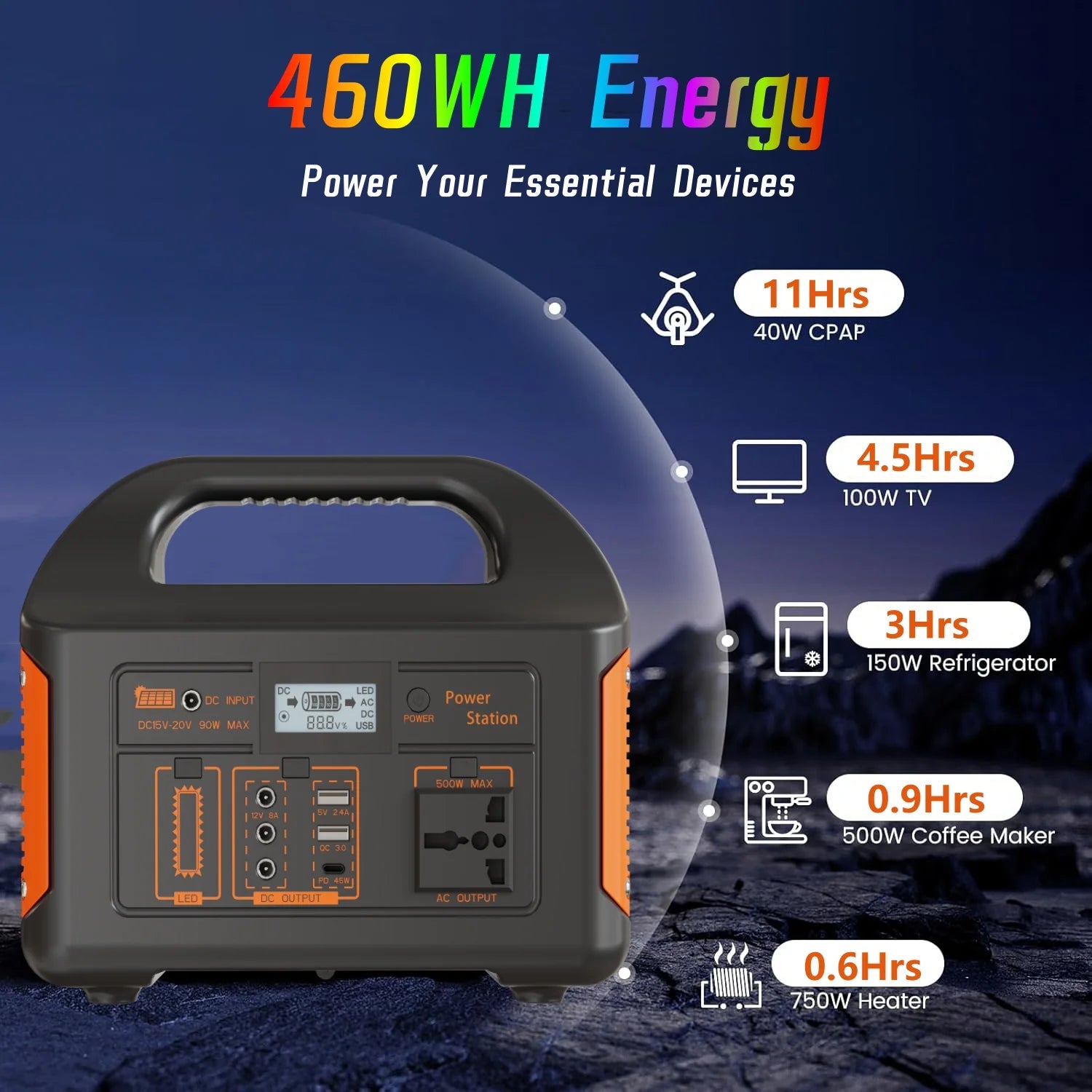

Battery Capacity |
76.8Wh |
256Wh |
460Wh |
Solar panel charging |
15V-20V Max 30W |
15V-20V Max 50W |
15V-20V Max 90W |
Charging Current |
Maximum Value 2A |
Maximum Value 2.5A |
Maximum Value 6A |
AC Charqer Specifications |
5v 2A |
14.6V 2A |
16V 5A |
Charging Time |
After full discharge,the battery capacity reaches 80% after 5 hours ot |
LCD |
Battery Voltage, State of Charge, State of Charge, State of Discharge |
Heat Dissipation |
intelligent Temperature Control Cooling Fan |
Noise |
1Meter Distance ＜45dB |
Protection Functions |
Low Voltage, Over voltage, Over
Load, Over Temperature, Short Circuit |
